A hybrid inverter is a power conversion device that manages electricity from multiple sources, typically solar panels, batteries, and the utility grid. It can convert solar DC power into AC power for electrical loads, charge a battery, draw power from the grid, and in some systems provide backup power during an outage.
Unlike a basic solar inverter, a hybrid inverter is designed to coordinate power generation, storage, and consumption. This allows energy to be used at different times instead of being consumed only when the solar panels are producing electricity.
For example, solar energy can supply the load during the day, charge the battery with excess power, and provide electricity at night. Depending on the system design, the grid can serve as an additional power source when solar and battery power are insufficient.
IFIND provides Hybrid Inverter solutions for residential, commercial, off-grid, and energy management applications.
What Is a Hybrid Inverter?
A hybrid inverter combines the functions of a solar inverter, battery inverter, and energy management controller in one system.
Its main purpose is to control the direction and timing of electrical energy. It determines whether available power should be:
The exact operating modes depend on the inverter design, battery compatibility, grid regulations, and programmed priorities.
A hybrid inverter is not simply a solar inverter with a battery connection. It must also manage charging and discharging limits, power flow, system protection, grid synchronization, and backup operation.
How Does a Hybrid Inverter Work?
A typical hybrid energy system may include:
Solar photovoltaic panels;
A hybrid inverter;
A battery energy storage system;
The utility grid;
Main and backup electrical loads;
Monitoring and communication equipment.
Solar Power Conversion
Solar panels produce DC electricity. The hybrid inverter uses an MPPT circuit to track the operating point where the PV array can produce the highest available power under current sunlight and temperature conditions.
The inverter then converts the DC power into AC power for household, commercial, or industrial loads.
Battery Charging
When solar production exceeds the immediate load demand, the hybrid inverter can direct the surplus energy to the battery.
The charging process must follow the battery manufacturer’s voltage, current, temperature, and state-of-charge limits. A compatible battery management system may communicate with the inverter to coordinate safe operation.
Battery Discharging
When solar generation is low or the load demand is higher than the available PV output, the hybrid inverter can draw energy from the battery.
The discharge strategy depends on the programmed operating mode. Some systems prioritize self-consumption, while others reserve battery capacity for power outages or peak-demand periods.
Grid Interaction
If solar and battery power cannot meet the load, the inverter may draw electricity from the grid. In a grid-connected system, it may also export surplus solar power when permitted by local regulations and the utility interconnection agreement.
The inverter must monitor grid voltage and frequency before connecting or exporting power. It also needs anti-islanding protection to prevent unsafe energization of a disconnected utility line.
Backup Operation
Some hybrid inverters can continue supplying selected loads when the grid fails. In this case, the inverter must isolate the backup circuit from the utility grid and create a stable local AC supply.
Not every hybrid inverter provides backup power. The model must specifically support off-grid or backup operation, and the electrical installation must include suitable transfer and protection equipment.
The U.S. Department of Energy explains that solar-plus-storage systems may provide power during outages when the inverter and system are designed for that function. More information is available in its guide to inverters and grid services.
Main Functions of a Hybrid Inverter
MPPT Solar Tracking
Maximum Power Point Tracking allows the inverter to adjust the PV operating point as sunlight and module temperature change.
This helps the system capture available solar power more effectively than a fixed operating point. The number of MPPT channels and their voltage and current ranges are important when designing the PV array.
Battery Charging and Discharging
A hybrid inverter controls when the battery charges and discharges. It should support the battery chemistry, communication method, charge current, discharge current, and operating limits required by the storage system.
Battery charging can come from solar power, the grid, or both, depending on the inverter configuration and local operating rules.
Energy Priority Management
A hybrid inverter can be programmed to follow different power priorities, such as:
Solar power first;
Solar power for loads and excess power for battery charging;
Battery power during peak-price periods;
Grid power during low-cost periods;
Battery reserve for emergency backup;
Grid support when solar and battery power are insufficient.
The best mode depends on electricity tariffs, load patterns, battery capacity, backup requirements, and local regulations.
Grid Synchronization
In grid-connected operation, the inverter synchronizes its AC output with the utility grid. It must follow the required voltage, frequency, phase, and power quality limits.
If the grid becomes unstable or fails, the inverter may disconnect from the grid. A backup-capable model can then supply an isolated group of loads if the system has been designed for this mode.
Backup Power
A hybrid inverter may provide backup power to selected circuits during an outage. These circuits are often called critical loads and may include lighting, communication equipment, refrigeration, pumps, or control systems.
The backup output should be sized according to both continuous load and starting demand. Motors, compressors, pumps, and other inductive loads may require substantially more power during startup.
Monitoring and Communication
Many hybrid inverters provide data monitoring through a display, RS485 connection, Ethernet, Wi-Fi, or a mobile application.
Typical monitoring data may include:
Monitoring is useful for identifying abnormal power flows, battery charging problems, communication failures, and repeated overload conditions.
Types of Hybrid Inverters
The term “hybrid inverter” is used for several different system architectures. The actual power circuit and operating modes should always be checked in the product documentation.
DC-Coupled Hybrid Inverter
In a DC-coupled system, the solar array and battery connect on the DC side of the system. A shared inverter manages the conversion of solar and battery power into AC power.
This configuration can reduce the number of conversion stages between solar generation and battery charging. It is commonly considered for new solar-plus-storage installations where the PV array and battery are designed together.
AC-Coupled Hybrid System
In an AC-coupled system, the solar array uses a separate grid-tied solar inverter, while the battery is connected through another bidirectional inverter.
An energy management system coordinates the two devices. AC coupling can be useful when adding battery storage to an existing solar installation, although the system may involve more components and control coordination.

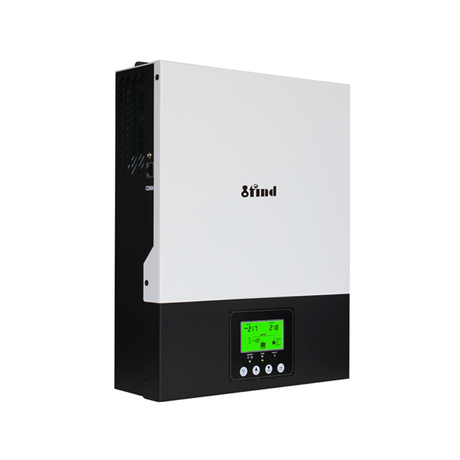

All-in-One Hybrid Inverter
An all-in-one hybrid inverter may combine several functions in one enclosure, such as:
MPPT solar charging;
Battery charging;
DC-to-AC conversion;
Grid input;
Backup output;
Monitoring;
Protection functions.
This design can simplify wiring and installation, but the available PV input range, battery compatibility, output capacity, and backup functions still need to be checked carefully.
Battery-Free Hybrid Configuration
Some products marketed as hybrid inverters can operate in a solar-direct or battery-free mode. They may use solar power and grid power without requiring a battery in every operating condition.
This does not mean that every hybrid inverter can operate without a battery. The product must specifically support battery-free operation, and the system may have limited power availability when sunlight changes or the grid is unavailable.
Hybrid Inverter vs. Other Inverter Types
Inverter Type | Main Function | Battery Support | Backup Capability |
Solar Inverter | Converts PV DC power into AC power | Usually limited or model-dependent | Usually not available during grid failure |
Grid-Tied Inverter | Sends synchronized solar power to loads or the grid | Usually not integrated | Normally shuts down when the grid fails |
Off-Grid Inverter | Creates a local AC supply without depending on the grid | Normally required | Designed for standalone operation |
Hybrid Inverter | Coordinates solar, battery, grid, and loads | Integrated or supported | Available on selected models |
The distinction is important because a grid-tied solar inverter cannot automatically provide power during a grid outage. It normally disconnects from the grid to comply with anti-islanding requirements.
A hybrid inverter can support backup operation only when it includes the necessary control functions, isolation method, and backup output.
IFIND’s Solar Inverter guide explains these fundamentals in more detail.
Applications of Hybrid Inverters
Residential Solar and Backup Systems
In residential systems, a hybrid inverter can coordinate solar generation, household consumption, battery storage, and grid power.
During the day, solar energy may supply household loads and charge the battery. At night, stored energy can support the loads. During a grid outage, selected circuits can remain powered if the system has an appropriate backup design.
Commercial and Small Industrial Buildings
Commercial buildings often have high daytime electricity consumption and may experience demand charges or time-of-use pricing.
A hybrid inverter can help coordinate solar generation and battery discharge according to the building’s load profile. It may reduce grid consumption during expensive periods and store solar energy that would otherwise be curtailed.
Remote and Off-Grid Power Systems
In remote locations, a hybrid inverter can combine solar power, batteries, and an auxiliary generator or other energy source.
The inverter manages available power according to load demand and battery state. This can reduce generator operating time while maintaining a stable supply for essential equipment.
Microgrids
Hybrid inverters are also used in small microgrids that combine renewable energy, storage, grid supply, and backup generation.
The inverter may operate in grid-following mode when the utility is available and switch to a local grid-forming mode when the system is isolated, provided that the model supports this function.

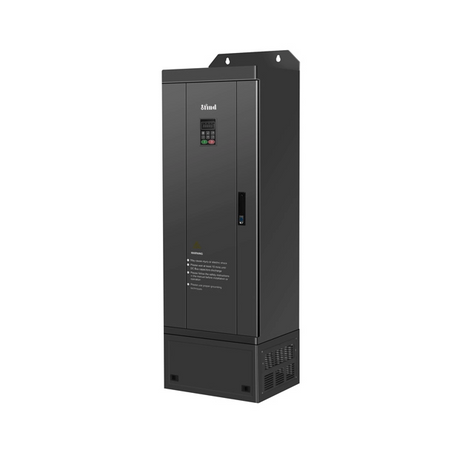

Solar Pump and Agricultural Systems
Some hybrid inverter configurations support solar-powered pumping together with grid or auxiliary power. This can be useful when pumping must continue during cloudy weather, at night, or during periods of high water demand.
The system still needs to be matched to the pump motor, flow requirements, total head, PV array, and available backup source.
How to Select a Hybrid Inverter
Determine the Power Requirement
Start by calculating the continuous power demand of the connected loads. Then identify equipment with high starting current, such as pumps, compressors, refrigerators, and motors.
The inverter should be selected according to continuous output power, short-term surge capacity, output phase, and the required load type.
The PV array must remain within the inverter’s permitted voltage and current range.
Check:
The cold-weather open-circuit voltage of the PV array must remain below the inverter’s maximum input limit.
Match the Battery System
Battery compatibility should be confirmed before installation. Check the supported battery chemistry, charge and discharge current, communication protocol, state-of-charge limits, and battery management system requirements.
The battery’s power rating and energy capacity serve different purposes. Power determines how much load can be supplied at one time, while energy capacity affects how long the system can operate.
Define the Operating Mode
Decide whether the system is intended for:
One hybrid inverter may not support every mode.
Consider Grid and Backup Requirements
For grid-connected systems, check applicable grid codes, anti-islanding requirements, export limitations, and utility approval procedures.
For backup systems, check transfer time, backup output rating, neutral configuration, short-circuit capacity, and whether the inverter can support motor loads.
Review Communication and Monitoring
If the inverter will be integrated into a building management system, microgrid controller, or remote monitoring platform, confirm the available communication interfaces and data points.
Installation and Safety Considerations
Hybrid inverter installation should be completed by qualified personnel familiar with both AC and DC electrical systems.
Important considerations include:
Use suitable DC and AC disconnects.
Install overcurrent and surge protection where required.
Follow the manufacturer’s grounding instructions.
Keep PV, battery, AC, and communication cables properly routed.
Provide suitable ventilation and clearance.
Install batteries in an appropriate location.
Confirm correct polarity before energizing DC connections.
Test backup isolation and transfer functions.
Follow local electrical codes and grid interconnection requirements.
Battery systems can store a significant amount of energy even when the solar array is not producing power. Maintenance and service procedures should therefore account for both PV and battery sources.
FAQs
What is the main purpose of a hybrid inverter?
A hybrid inverter manages electricity from solar panels, batteries, the utility grid, and connected loads. It controls when energy is used, stored, imported, or exported.
Can a hybrid inverter work without a battery?
Some hybrid inverters support battery-free or solar-direct operation, but this is model-dependent. A battery is normally required for energy storage and backup operation.
Does a hybrid inverter work during a power outage?
Only a hybrid inverter with a dedicated backup or off-grid function can continue supplying power during a grid outage. The system must also have suitable wiring, isolation, and correctly sized backup loads.
What is the difference between a hybrid inverter and a solar inverter?
A standard solar inverter mainly converts PV DC power into AC power. A hybrid inverter can also manage battery charging and discharging, grid interaction, backup power, and energy priorities.
How long can a hybrid inverter provide backup power?
Backup duration depends on battery energy capacity, inverter output power, connected load, battery reserve settings, and system efficiency.
A larger inverter can supply more instantaneous power, but it does not necessarily provide longer backup time unless the battery also has sufficient energy capacity.
Can a hybrid inverter export power to the grid?
Some models support grid export, but export must be permitted by the inverter configuration, local regulations, and utility interconnection requirements.
How do I size a hybrid inverter?
Consider the continuous load, starting current, peak load, PV array, battery power, battery energy capacity, backup duration, output phase, and required operating modes.
The inverter should be sized for the actual system rather than selected only according to the PV panel capacity.
Conclusion
A hybrid inverter is designed to coordinate solar power, battery storage, grid electricity, and electrical loads in one energy management system. Its functions may include MPPT tracking, battery charging and discharging, grid synchronization, backup power, load management, and remote monitoring.
The right configuration depends on the intended operating mode. A residential backup system, commercial peak-shaving project, remote microgrid, and solar pumping system may all require different inverter capabilities.
Before selecting a hybrid inverter, confirm the PV input range, battery compatibility, continuous and surge output, backup function, grid requirements, communication interfaces, and installation environment. When these factors are properly matched, a hybrid inverter can improve solar energy utilization and provide more flexible power management.
