What is the Difference Between VFD and Servo Drives?

Introduction: Decoding a Common Confusion in Motor Control

In the vast world of industrial automation and electromechanical systems, the terms Variable Frequency Drive (VFD) and servo drive are frequently discussed. For engineers, technicians, and even advanced hobbyists embarking on a new automation project, the choice between these two motor controllers is a critical decision point. While both a VFD and a servo drive are designed to manage electric motors, they are fundamentally different tools built for vastly different jobs. Choosing the wrong one can lead to disappointing performance, operational inefficiencies, or completely unnecessary costs. A high-power application might need a specific type of VFD, while a precision task is impossible without a servo.

This comprehensive guide will demystify the topic once and for all. We will provide a clear, head-to-head comparison, exploring the core differences between a VFD and a servo drive. We will delve into their control methodologies, performance characteristics, and ideal applications. By the end of this article, you will not only understand the function of each device but also be able to confidently choose the right controller for your specific needs, ensuring your system is both effective and economical. The role of the modern VFD is expanding, and understanding its capabilities is more important than ever.

Foundational Knowledge: What is a Variable Frequency Drive (VFD)?

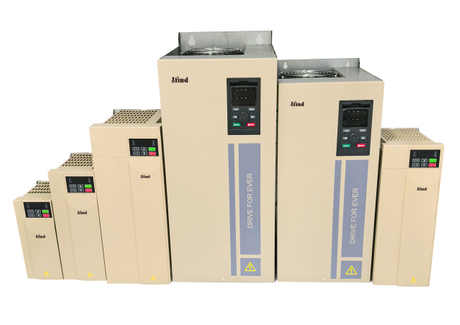

Before we can compare, we must first understand the purpose of a VFD. A Variable Frequency Drive, often referred to by its common alias AC drive, is a type of motor controller used to vary the operating speed of an alternating current (AC) motor by controlling the frequency and voltage of the power supplied to it.

The Core Purpose of a VFD: Efficient Speed Control

At its heart, the primary job of a VFD is efficient speed control. Think of a VFD as a sophisticated gas pedal for an electric motor. Many industrial applications, such as fans or pumps, do not need to run at full speed 100% of the time. By installing a VFD, you gain the ability to precisely match the motor's speed to the actual demand of the load. This simple capability unlocks the chief benefits of using a VFD: massive energy savings, reduced mechanical stress through soft starts, and a significantly extended operational life for the motor and connected equipment. A VFD is, therefore, a cornerstone of modern industrial energy efficiency. Any system looking to reduce operational costs should consider implementing a VFD. The return on investment for a VFD installation is often measured in months, not years, due to the direct reduction in energy consumption. A well-implemented VFD is a guaranteed cost-saver.

How a VFD Works: The Principle of Varying Frequency and Voltage

The magic of a VFD lies in its simple yet effective working principle. The rotational speed of a standard AC motor (measured in RPM) is directly proportional to the frequency (measured in Hertz, Hz) of the electrical power it receives. A typical VFD works in three stages:

1. Rectifier Stage: The VFD takes standard AC power from the grid and converts it into DC power.

2. DC Bus/Filter Stage: This DC power is smoothed out and stored in capacitors.

3. Inverter Stage: The VFD then takes this clean DC power and "inverts" it back into a simulated AC output. Crucially, the VFD can precisely control the frequency and voltage of this new AC signal.

By lowering the frequency sent to the motor, the VFD slows it down; by increasing the frequency, it speeds it up. By default, this is an "open-loop" control system. The VFD sends a command to run at a specific speed, but it doesn't inherently check to see if the motor has actually achieved that exact speed. For many applications, this level of control from the VFD is perfectly sufficient.

Typical VFD Applications: Where They Shine

Because of its focus on efficient speed control, a VFD is the ideal choice for a wide range of applications where precision positioning is not the main goal. Any rotational application that benefits from variable speed is a prime candidate for a VFD. Common examples include:

• Pumps and Fans

• Conveyor Belts

• Mixers and Agitators

• HVAC and Chiller Systems

• Extruders and Mills

In all these cases, the VFD provides invaluable process control and major energy savings.

Foundational Knowledge: What is a Servo Drive?

While a VFD is the master of speed, a servo drive is the master of precision. A servo drive is an electronic amplifier used to power and control a servomotor, with a primary focus on high-precision motion control. It's crucial to understand that a servo drive does not operate in isolation; it is one part of a complete, high-performance "servo system."

The Core Purpose of a Servo Drive: High-Precision Motion Control

The fundamental job of a servo drive is to take a command signal from a motion controller and translate it into the exact amount of current required to make a servomotor move to a highly specific position, at a precise velocity, and with a controlled torque. Unlike a VFD that focuses on "how fast," a servo focuses on "exactly where, when, and how."

How a Servo Drive Works: The Closed-Loop Feedback System

The defining characteristic of a servo system is its closed-loop feedback mechanism. This system consists of three core components:

1. The Servo Drive: The brains and muscle of the operation.

2. The Servomotor: A specialized motor, typically a permanent magnet synchronous motor, designed for high dynamic response.

3. The Feedback Device: An encoder or resolver mounted directly to the motor shaft.

This system works in a continuous loop of command and correction. The motion controller tells the servo drive to move the motor to Position X. The drive sends power to the motor, which begins to turn. The encoder instantly reads the motor's actual position and reports it back to the drive. The servo drive then compares the commanded position (X) with the actual position reported by the encoder. If there is even the slightest deviation (an "error"), the drive makes an instantaneous correction to the power signal to eliminate that error. This loop runs thousands of times per second, ensuring incredible accuracy. This is a world away from the open-loop nature of a standard VFD.

Typical Servo Drive Applications: When Precision is Paramount

Servo drives are deployed in applications where there is no room for error and dynamic performance is critical. They are the go-to solution for:

• Robotics and Robotic Arms

• CNC Machining and Milling

• Automated Assembly and Pick-and-Place Systems

• High-Speed Printing and Labeling Equipment

• Semiconductor Manufacturing

VFD vs Servo Drive: A Head-to-Head Comparison

To truly grasp the distinction, a direct comparison is essential. The following table provides a clear snapshot of the fundamental differences between a general-purpose VFD and a servo drive system.

Breaking Down the Key Differences Between VFD and Servo Drives

The comparison table gives us the "what," but it's equally important to understand the "why." Let's break down the most significant points of divergence.

Control Methodology: The Difference Between Commanding Speed and Correcting Position

The most profound difference lies in the control philosophy. An open-loop VFD operates on a "fire and forget" basis. It outputs a 50 Hz signal and assumes the motor is running at the corresponding speed. It has no native way of knowing if the motor has stalled or if the speed has drooped under a heavy load.

A servo drive, by contrast, is in a constant state of vigilance. Its entire existence is based on eliminating the "following error"—the gap between where the motor is supposed to be and where it actually is. This closed-loop feedback is what gives a servo its phenomenal precision and makes it suitable for tasks a standard VFD could never accomplish.

Performance and Dynamics: A Look at Response and Overload

A servo system is built for speed and agility. It can accelerate a load from a standstill to thousands of RPM and back to zero in milliseconds. To achieve this, servo drives have a very high "current loop bandwidth" and are designed with a high overload capacity (often 300% or more of their rated current for short periods). This allows them to deliver immense torque to overcome inertia instantly.

A VFD, on the other hand, is built for smooth, steady control. Its acceleration and deceleration are programmed in "ramps" over seconds, not milliseconds. Its lower overload capacity (typically 150%) is sufficient for gradually starting a fan or pump, but it lacks the dynamic punch required for true motion control. The performance of the VFD is perfect for its intended applications.

Precision and Accuracy: The Critical Role of the Encoder in a Servo System

You simply cannot have a servo system without an encoder. The encoder is the "eyes" of the drive, providing the high-resolution feedback (often millions of counts per revolution) needed for pinpoint positioning. A VFD does not need this feedback for its primary function of speed control. While you can add an encoder to a high-performance VFD to create a "closed-loop vector" system for more precise speed regulation, it still lacks the computational power and motion-planning capabilities of a true servo drive. The standard VFD works perfectly fine without this.

Cost Analysis: Why is a Servo Drive More Expensive than a VFD?

The cost disparity is significant and stems from the entire system.

• The Drive: A servo drive contains more advanced, higher-speed processors and more complex control algorithms than a VFD.

• The Motor: Servomotors use expensive rare-earth permanent magnets to achieve high torque density and low inertia, whereas a VFD uses a standard, mass-produced induction motor.

• The Feedback: A high-resolution encoder is an expensive precision instrument in itself.

• Cabling: Servo systems require specialized, shielded feedback and power cables.

When you add it all up, a complete servo system can easily cost 5 to 10 times more than a comparable horsepower VFD and motor combination. This is why you only use a servo when the application absolutely demands its capabilities. The low cost of a VFD makes it an easy choice for simpler tasks.

The Evolving Role of the VFD in Modern Applications

The world of the VFD is not static. New technologies and demands are pushing the boundaries of what a VFD can do. One of the most significant recent trends is the rise of the solar VFD.

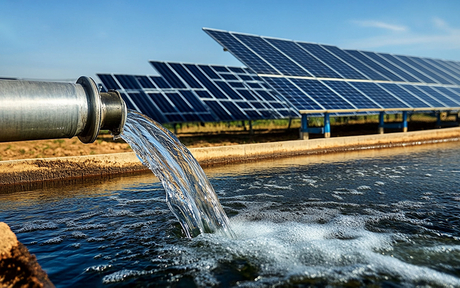

A solar VFD is a specialized type of VFD designed to power water pumps directly from solar panels, completely off-grid. It contains advanced Maximum Power Point Tracking (MPPT) algorithms that continuously adjust the motor's speed to extract the maximum possible power from the solar array as lighting conditions change throughout the day. This technology has revolutionized agriculture and water access in remote regions, providing a reliable and sustainable solution where grid power is unavailable or expensive. The solar VFD is a perfect example of how the core technology of the VFD can be adapted for highly specialized, impactful applications.

How to Choose: Is a VFD or a Servo Drive Right for Your Application?

Now for the most important question: which one do you need? Here’s a simple guide.

You Should Choose a VFD When…

• Your primary goal is controlling motor speed for process control (e.g., maintaining a certain flow rate).

• Your number one priority is energy savings on centrifugal loads like pumps and fans.

• The application does not require precise, repeatable positioning.

• The load changes are relatively slow and gradual.

• Cost is a primary decision-making factor. A VFD offers incredible value.

• Example Application Recap: Industrial Fans, Conveyor Belts, Water Pumps, HVAC Air Handlers. For these, a VFD is the perfect solution.

You Should Choose a Servo Drive When…

• The application demands high-precision positioning and absolute repeatability.

• You need extremely rapid acceleration, deceleration, and quick direction changes.

• The system requires the perfect synchronization of multiple motors (axes).

• Performance and accuracy are far more important than the initial system cost.

• You need to follow a complex motion profile with varying speeds and positions.

• Example Application Recap: A Robotic Arm, CNC Spindle Positioning, Bottle Capping Machine, Medical Imaging Equipment.

Common Questions: VFD and Servo Drive FAQs

What is an elevator drive inverter and how does it relate to a VFD?

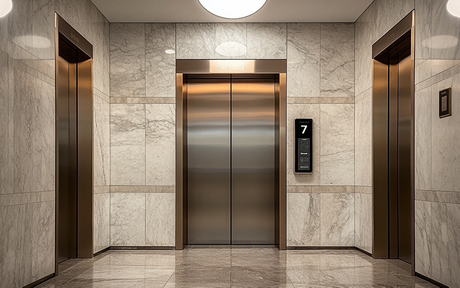

An elevator drive inverter is a highly specialized, sophisticated type of VFD. While it operates on the same basic principle of controlling motor speed by varying frequency, it incorporates a host of advanced features critical for elevator use. These include:

• Extremely smooth acceleration and deceleration ramps for passenger comfort.

• Advanced torque control for holding the elevator car stationary.

• Direct-to-floor landing capabilities for precise alignment.

• Integrated safety features and brake control logic.

• Battery backup or rescue mode functionality.

So, while it is technically a type of VFD, the elevator drive inverter is a premium, application-specific controller that goes far beyond a general-purpose AC drive.

Can a VFD be used for position control?

Yes, to a limited extent. A high-performance "closed-loop vector" VFD paired with an encoder can perform basic "go-to-position" tasks. However, it will never match the dynamic response, update speed, or pinpoint accuracy of a true servo system. It's a viable option for simple indexing on a conveyor, but completely unsuitable for a task like CNC machining.

What is the main benefit of a VFD compared to a servo drive?

The two overwhelming benefits of a VFD are its low cost and its ability to generate massive energy savings in a wide range of common industrial applications. A VFD makes advanced motor control accessible and economically justifiable for countless systems.

Conclusion: Making the Right Choice Between VFDs and Servo Drives

The debate between a VFD and a servo drive is not about which technology is "better," but about which is the right tool for the job. They are both exceptional technologies designed to solve different problems. The VFD is the undisputed champion of efficient and cost-effective speed control, making it an indispensable component in modern industry and infrastructure. The servo system is the pinnacle of high-performance motion control, enabling a level of precision and automation that was once unimaginable.

To put it in the simplest terms:

• If your mantra is "Control my speed efficiently and affordably," your answer is the VFD.

• If your mantra is "Hit my target position perfectly and quickly, every single time," your answer is the servo drive.

By understanding these fundamental differences, you can move forward with confidence, designing and specifying motor control systems that are not only technologically sound but also perfectly aligned with your performance requirements and budget. The humble VFD has a powerful and important role, just as the complex servo drive does. Choose wisely.
